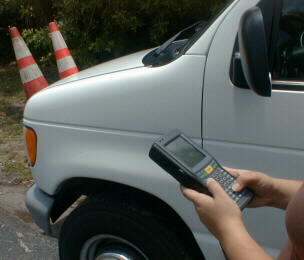

MAT - Mobile Application Terminal
Operating
System
Windows CE.NET with .NET Compact
Framework
(Pro*, Pro Plus**)
Microprocessor
Intel Xscale PXA255, 400MHz
Memory
& Storage
64MB RAM, 48MB Flash, Windows CE Pro*
128MB RAM, 96MB Flash, Windows CE Pro Plus**
Persistent Storage (Data, System Files, Registry)
Communications
Full RS-232
USB 1.1 host for keyboard, printers,
etc.
USB 1.1 client for synching with a host
Bluetooth (WPAN) (optional)
802.11b (WLAN) (optional)
Expansion
Slots
Compact Flash
SD/MMC
Display
3.5” QVGA (240x320)
64K Color
Transflective/Sun-light Readable
Touch Screen with stylus or finger
Backlit (varying levels software
controlled and keyboard on/off)
Indicators
Front panel LED’s
Charge Indication (Yellow/Green)
Programmable LED (Green)
Integrated Vibrator
Keypad
49 key, full alphanumeric, plus 2 side
Scan keys
12 Function Keys, (4 dedicated, 8
shifted)
Backlit, Color, software controlled (on/off)
One centrally located Scan key, Two
side Scan Keys
2 “Enter” Keys (right/left-hand
accessible)
Large Numeric Keys
Flat, rubberized, non-glare keys
One-hand (sticky key) operation
Programmable Audible “key click”
Software Keypad
Shift & Navigation Key LED indicators
Audio
Capabilities
Integrated Speaker
Integrated Microphone
Beeper/Buzzer: 90dBA programmable
volume, pitch and duration
Headset jack, 3.5mm
Power
Removable Li-Ion
3.7V,
4400mAh min.
Back-up Li-Ion 3.7V, 120mAh
8 hr. minimum live use (scanner,
keyboard and radio use)
Power jack for external power and
charging
Gas Gauge
User
Environment
Environmental Specifications
Operating Temp: 14� to 131�F (-10� to 55� C)
Storage Temp: -13� to 140�F (-25� to 60�C)
IP-64
Drop test rating: 5 feet, multiple times to concrete
Relative Humidity: 5 to 95% non-condensing
UL flame Rating: 94V/0
Regulatory Approvals
FCC Part 15 Class B
CE
Mechanical
Construction
Palmheld
Integrated Stylus Holder
Hand Strap (stretchable, adjustable and
removable)
Co-molded
Ergonomically designed
Dimensions
Length: 8.676 in.
Width at display: 3.813 in
Width at keypad: 3.16 in.
Height at keypad: 1.402 in.
Weight: 20 oz.
Input
Connectivity
Integrated 1D Laser
Optional Input Devices - via
RS232 or USB interface
Wands
External
Lasers
Barcode
Slot
Handheld
CCD’s
Magnetic
Stripe
Codabar
ISBN Conversion
Code 39
GTIN Conversion
Code 39 Full ASCII
RSS-14 (SE824 only)
Code 93
Trioptic Code 39
Code 128
MSI Plessey
UCC/EAN-128
EAN-8
UPC-A
EAN-13
UPC-E
UPC-E1
Interleaved 2 of 5
Industrial 2 of 5
Coupon Code
ISBT-128
Application
and 3rd Party Software
ActiveSync
Inbox - Email
Internet Explorer 5.5 (Full CE .NET Version)
Windows Messenger
WordPad
Windows Media Player
Hand writing recognition
Download tool for upgrades
Signature Capture
Voice recorder
Terminal Emulation
Remote Desktop Protocol
Pro Plus version includes Viewers
Excel
PDF
PowerPoint
Word
Development Tools
Software Developer’s Kit - Support
for
eVC++
Visual
Basic.NET
Visual C#
Custom Control for Super Wedge
interface
Sample/Demo applications available
XML, Jscript, VBScript
NDIS 5.1
Network Utilities
Object Exchange Protocol (OBEX)
Speech API
(used to develop
speech applications)
TCP/IP
Active Template Library (ATL)
Microsoft Foundation Class (MFC
DCOM, DirectX
SNMP, SOAP, Pocket Outlook Object Model API
.NET Compact Framework with SQL Server
Accessories
Dock with spare battery bay for
communications, charging and device storage.
Communications via the Dock
-
RS232
-
USB
- Modem (Optional)
Cigarette Lighter
Protective Case
Lanyard
Shoulder Strap
Holster/Belt Clip
RS-232/USB
USB (Client/Host)
Modem
Magnetic Stripe Reader (Future Release)
Fingerprint Reader (Future Release)
