MAT 223

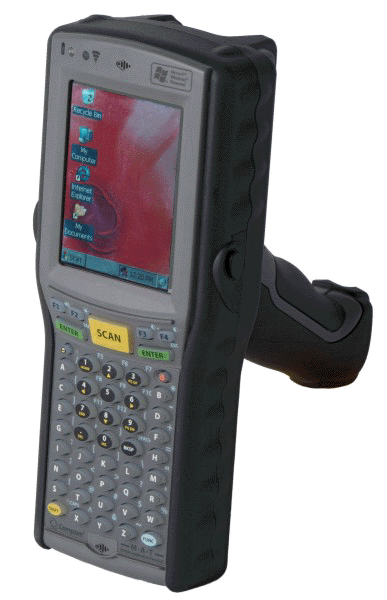

Pistol Grip

Mobile Application Terminal

Return to MAT 223 Home Page

Contact Compsee Today,
for a full information package on our MAT - Mobile Application Terminal

Operating System

  Windows CE .NET 4.2 with .NET Compact Framework 1.0 or

     Windows CE .NET 5.0 with .NET Compact Framework 2.0

  Pro* or  Pro Plus**

Microprocessor

  Intel Xscale PXA255, 400MHz

Memory & Storage

  128MB RAM, 96MB Flash

  Persistent Storage (Data, System Files, Registry)

Communications

  Full RS-232

  USB 1.1 host for keyboard, printers, etc.

  USB 1.1 client for synching with a host

  Bluetooth (WPAN) (optional)

  802.11b/g (WLAN) (optional)

  Cingular GSM/GPRS (WWAN (optional)

Expansion Slots

  Compact Flash (Integrated)

  SD/MMC (User Accessible)

Display

  3.5” QVGA (240x320)

  64K Color

  Transflective/Sun-light Readable

  Touch Screen with stylus or finger

  Backlit (varying levels software controlled and keyboard on/off)

Indicators

  Front panel LED’s

       Charge Indication (Yellow/Green)

       Programmable LED (Green)

  Integrated Vibrator

Keypad

  49 key, full alphanumeric, plus 2 side Scan keys

  12 Function Keys, (4 dedicated, 8 shifted)

  Backlit, Color, software controlled (on/off)

  One centrally located Scan key, Two side Scan Keys

  2 “Enter” Keys (right/left-hand accessible)

  Large Numeric Keys

  Flat, rubberized, non-glare keys

  One-hand (sticky key) operation

  Programmable Audible “key click”

  Software Keypad

  Shift & Navigation Key LED indicators

Audio Capabilities

  Integrated Speaker

  Integrated Microphone

  Beeper/Buzzer: 90dBA programmable volume, pitch and duration

  Headset jack, 3.5mm

Power

    Removable Li-Ion

           3.7V, 4400mAh

    Back-up Li-Ion 3.7V, 120mAh

   8 hr. minimum live use (scanner, keyboard and radio use)

   Power jack for external power and charging

   Gas Gauge

User Environment

   Environmental Specifications

  Operating Temp: 14� to 131�F (-10� to 55� C)

  Storage Temp: -13� to 140�F (-25� to 60�C)

  IP-64

  Drop test rating: 5 feet, multiple times to concrete

  Relative Humidity: 5 to 95% non-condensing

  UL flame Rating: 94V/0

   Regulatory Approvals

  FCC Part 15 Class B

  CE

Mechanical

   Construction

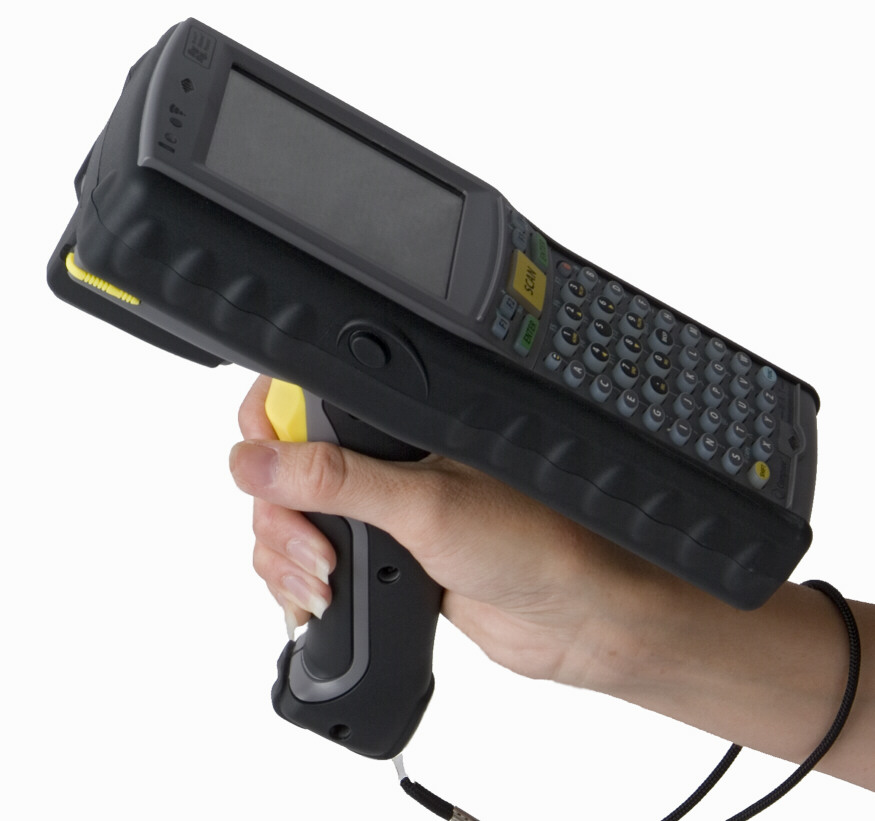

  Pistol Grip

  Integrated Stylus Holder

  Co-molded for ruggedness

  Ergonomically designed

   Dimensions

  Length: 8.60 in.

  Width at display: 3.80 in

  Height: 6.53 in.

  Weight: 27 oz.    (Long Range Laser & Bluetooth)

                 28.5 oz.  (Standard Laser & WLAN Card)

Supported Integrated Bar Code Scanners

  1D Laser (Standard) - SE1224HP

Premium scanning with built-in fuzzy logic processing for 1D codes. Supports Reduced Space Symbologies� (RSS) as well as existing 1D Symbologies.

  1D Long Range (Optional) - SE1524ER

Extended range scanning of 1D symbologies. Reads from 2-inches to 22 inches on a 7.5 mil and over 40 feet on a 100 mil reflective label.  Supports aim mode.

  2D Laser (Optional) - SE2223

High-speed raster pattern, optimized for accurate reading of 1D and 2D high-density symbologies.

   Imager (Optional) - IT5180SR

Powered by Adaptus™ Imaging Technology, with full omnidirectional reading. Capable of reading 1D linear codes, 2D stacked/matrix codes, OCR fonts and postal codes, along with the ability to capture images.

Supported Symbologies

Application and 3^rd Party Software

  ActiveSync

  Inbox - Email

  Internet Explorer 5.5 (Full CE .NET Version)

  Windows Messenger

  WordPad

  Windows Media Player

  Hand writing recognition

  Download tool for upgrades

  Signature Capture

  Voice recorder

  Terminal Emulation

  Remote Desktop Protocol

  Pro Plus version includes Viewers

        Excel


        PDF

        PowerPoint

        Word

Development Tools

  Software Developer’s Kit - Support for

       eVC++

       Visual Basic.NET

      Visual C#

  Custom Control for SuperWedge interface

  Sample/Demo applications available

  XML, Jscript, VBScript

  NDIS 5.1

  Network Utilities

  Object Exchange Protocol (OBEX)

  Speech API  (used to develop speech applications)

  TCP/IP

  Active Template Library (ATL)

  Microsoft Foundation Class (MFC)

  DCOM, DirectX

  STP (Simple Time Protocol)

  SOAP, Pocket Outlook Object Model API

       .NET Compact Framework with SQL Server

Accessories

  Dock with spare battery bay for communications, charging and device storage.

  Communications via the Dock

-  RS232

-  USB (Client/Host)

-  Modem (Optional)

  Cigarette Lighter Power Cable

  Lanyard

  Shoulder Strap

Optional End Caps available for

   RS-232/USB

   USB (Client/Host)

   Modem (Optional)

   Magnetic Stripe Reader (Future Release)

   Fingerprint Reader (Future Release)
