Keyboard Wedge

INPUT OPTIONS

Bar Code Input Port	Wands, Lasers, CCD's, Bar Code Slots, etc.
Auxiliary Input Port	Magnetic Stripe Serial RS 232 - Portable Terminals, Scales, etc.

INTERFACE OPTIONS

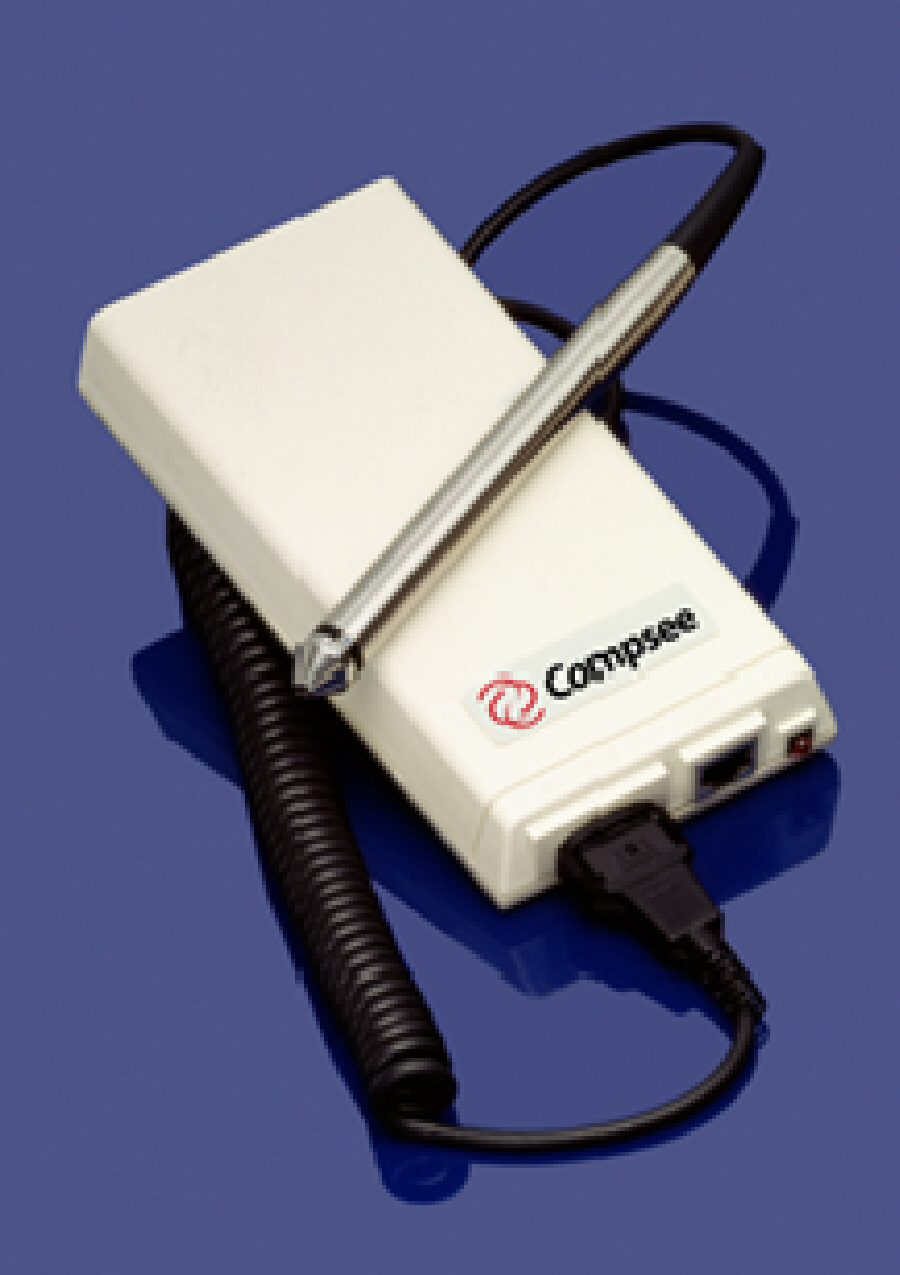

The QuickLink, Compsee's 4^th generation keyboard wedge technology is state-of-the-art in user program flexibility, ability to interchange between terminals and in its low-profile, lightweight design.

The QuickLink simply plugs in between the keyboard and display. The input data is decoded and transmitted to the display as if it were keyed. The keyboard remains active at all times.

Simple programming via menus allows the user to customize the unit to match the keyboard input required by their present software. The user can verify the input data to inhibit invalid data, as well as format the data to match screen input. The QuickLink is designed to eliminate as much as possible the manual entry of data.

SPECIFICATIONS

INTERFACES OPTIONS
RS 232
Keyboard Wedge - Call for additional  Interface Options

APPLE             MACINTOSH
AT&T 	          6500
IBM               PC XT/AT, PS/2, 3151, 3161, 3163
                  31791, 31792, 31801,
                  31802, 3191, 3196, 3197, 3471,
                  3472, 3476, 3477, 3481, 3486
DEC               220, 320, 420
DECISION DATA     3776, 3496, 3497, 3596122K
                  359683K, 3596-102K
                  3761, 3781, 3791, 3776
HEWLETT PACKARD   700/92, 2624-B, 2392-A
MEMOREX           1192  1472  2192
TELEX             078  079  080
UNISYS            B26  T27
WYSE              30  50  75
                  ASCII Keyboard
                  PC Enhanced Keyboard
                  105 & 108 Keyboard


TERMINAL MANUFACTURERS SUPPORTED
(Call for interface information to other terminals)
  ADDS          DATACARE         I/O           PARADYNE
  ADI           DATA GENERAL     INTERCOLOR    PHAZE
  ALCATEL/ITT   DEC DIGITAL      IBM           QUME
  ALTOS         DECISION DATA    IS            STRATUS
  AMPEX         DELL             ITT           SUN
  API           DTS              LEE DATA      TANDEM
  APPLE         EPSON            LIBERTY       TECHNICON
  ATT           FUJITSU          LINK          TELETYPE
  BEEHIVE       GATEWAY          LYNK          TELEVIDEO
  CLINK        GRID LAPTOP      MAI BASIC IV  TELEX
  C-ITOH        HARRIS           MEMOREX       TEXAS INSTR
  CABLEDATA     HEWLETT PACKARD  MICROTERM     UNISYS
  COMPAQ        HDSI             MOTOROLA      VISENTECH
  COMTERM       HONEYWELL        NCD           WYSE
  CUMULUS       ICL              NCR           ZENITH
  DASI          IDEA COURIER     ORBIT         ZENTEC



BAR CODE SYMBOLOGIES
Auto-discriminates between the following symbologies
Code 3 of 9            Code 3 of 9 Extended
Interleaved 2 of 5     Industrial 2 of 5
Codabar                Code 11
Code 128               Plessey
Code 93                Matrix 2 of 5
UPC A                  EAN/JAN 8
UPC E                  EAN/JAN 13


INPUT OPTIONS
Bar Code Readers   (5V readers)
  - Non-Contact             Lasers
                            CCD's
                            Presentation (Slot) Scanners
  - Contact                 Wands
                            Bar Code Slot
Magnetic Stripe Readers     Detached -Track 1, 2 or 1 & 2
RS 232 Auxiliary Input      Portable Terminals
                            Scales
                            Slot Scanners


DIMENSIONS
Length            7.3"
Height            1.0"
Width             3.4"
Weight            12 oz.


POWER REQUIREMENTS
Power is consumed from the terminal on most
keyboard interfaces.  An external 5 Volt power supply
is required for some terminal interfaces and for RS 232
communications.


ENVIRONMENTAL CHARACTERISTICS
Operating Temperature        -5° C to  +40° C
NonOperating Temperature    -20° C to +65° C
Relative Humidity            To 95% (NonCondensing)

The QuickLink programmability lets the user customize
by defining data input validation and data output formatting.

GENERAL PARAMETER
Terminal Type                 Keyboard Type
Buffer Enable/Disable         Beeper Volume
Intercharacter Delay          Mag Track Select
Interfunction Delay


BAR CODE INPUT PARAMETERS
Preamble  -   (Up to 16 Characters or Functions)
Postamble  -  (Up to 16 Characters or Functions)
Embedded Function Code        Code Identification
Redundancy                    Code ID Transmit
Code Enable/Disable           Code Length
Check Digit Checks            Start/Stop Transmit
Check Digit Transmit
SERIAL PARAMETERS
Baud Rate                     Parity
Word Length                   Stop Bits
Protocol                      Dual Port Enable
Record Terminator             Fixed Length Enable
Transmit Path                 Embedded Function Codes
INPUT / OUTPUT DATA EDIT PARAMETERS
Qualify by Port               Add Data
Qualify by Symbology          Delete Data
Qualify by Length             Reformat Data
Qualify by Data Match         Define 2 Output Formats
KEYBOARD MAPPING PARAMETERS
Single Key Positions          Data Records
Multiple Key Positions        Function Records
EXAMPLES  -  USER PROGRAMMING
1) Qualify by Length, Symbology and 2 Match Positions
        - If Code 3 of 9        - Position 4 = M
        - 12 Digits             - Position 7 = T
        Output Format =  Ignore Match Characters,
                         Insert Tab and Enter
        Input Record:    192M74T93842
        Output Format:   192<Tab>7493842<Enter>
2)     Qualify by Symbology and 1 Match Position
        - If Code 128           - Position 8 = 5
        - Variable Length
       Output Format =  Ignore Match Character
                        Insert Data and Function Codes
       Input Record:    00433005920000223
       Output Format:   0043300<F9><9001><Enter>
                        920000223<ALT"B">
